Universal 81W

Low-cost, high efficiency aqueous cleaning

The Universal 81W cleaning system is a low-cost, highly efficient system which, owing to its modular design, can be used for a very wide range of applications in cleaning parts.

Depending on the features installed the Universal 81W is suitable not only for removing oil and emulsion from mass-produced parts but also for the fine cleaning of assembly parts. All the cleaning stages use an immersion process and aqueous media.

Equipment and Process

  • Cleaning and drying process in a vacuum-proof work chamber
  • Work chamber is fed from the front, manually or automatically
  • Automatic work chamber door locking
  • Rotation and oscillation movements to support the cleaning and drying effect
  • Integrated full-flow filtration
  • Integrated oil separator
  • Siemens S7 PLC control system for custom programming of process sequences
  • Error diagnosis via plain text display on operator control panel
  • Closed system housing with maintenance doors for optimum access

Optional Extras

  • Third flood tank for additional rinsing or preservation
  • Waste water-free operation due to integrated Aquaclean treatment unit
  • High-power injection flood washing
  • Ultrasonic unit
  • Vacuum drying
  • Cartridge filter for fine cleaning
  • Automatic conveyor
  • Automatic basket lid placement
  • Ion exchanger for demineralisation

Advantages

  • Compact design, ready to connect up
  • Multi-step washing/rinsing process with hot-air and vacuum drying
  • Waste water-free operation possible
  • All parts coming into contact with media are made of stainless steel
  • Plenty of scope for expansion due to modular design

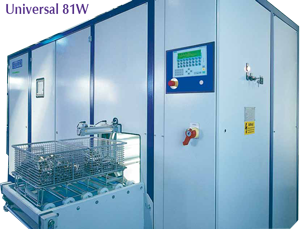

universal-81w-1
