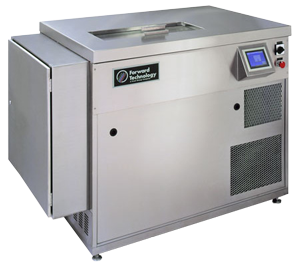

An economical solution to solvent to precision cleaning application.The F-200 Series Open Top Solvent Cleaning System is designed to safety employ all of todays non-flammable and EPA approved solvent. lts compact footprint allows for easy integration into production lines and is ideal to remove organic residues like organic films, fingerprints, grease, mold rele and oils. The F-200 Series is an open top solvent cleaning system.
Get the F-200 Product Brochure
Product Features
- Solvent immersion tank with patented Crest 40, 58, 132, or 192
- kHz ultrasonics
- Electrically heated boiling immersion sump
- Dual compressor refrigeration
- PLC control with automation capability
- Removable panels for easy maintenance access
- Re-circulation with cartridge filtration
- Two gravity water separators with molecular sieve capability
- Compact foot print for easy integration in production flow
- Manual downtime cover
- Stainless steel condenser and chiller coils to avoid corrosion
- Stainless Steel Process tank with bright annealed
- Finish
- Solvent cool down mode to minimize solvent loss
- Energy saver mode
Product Safety
- Refrigeration temperature monitoring
- Boiling Tank over Temperature signal with solvent replacement warning.
- Extended freeboard volume
- Boiling tank low level control
- Vapor level control with reset
Additional Options
- Basket
- Automated transport system
- Powered cover
- Upper enclosure
